IV Pole XL, "One Hand" telescopic solution, 4 hooks, in stainless steel (AISI 304)

JB 332-2-320-190


-

  • IV Pole XXL, "One Hand" telescopic solution, 4 hooks. JB 332-2-320-190 by JB Medico
  • IV Pole XXL, "One Hand" telescopic solution, 4 hooks. JB 332-2-320-190 by JB Medico
  • IV Pole XXL, "One Hand" telescopic solution, 4 hooks. JB 332-2-320-190 by JB Medico
  • IV Pole XXL, "One Hand" telescopic solution, 4 hooks. JB 332-2-320-190 by JB Medico
  • IV Pole XXL, "One Hand" telescopic solution, 4 hooks. JB 332-2-320-190 by JB Medico
  • IV Pole XXL, "One Hand" telescopic solution, 4 hooks. JB 332-2-320-190 by JB Medico
IV Pole XXL, "One Hand" telescopic solution, 4 hooks. JB 332-2-320-190 by JB Medico

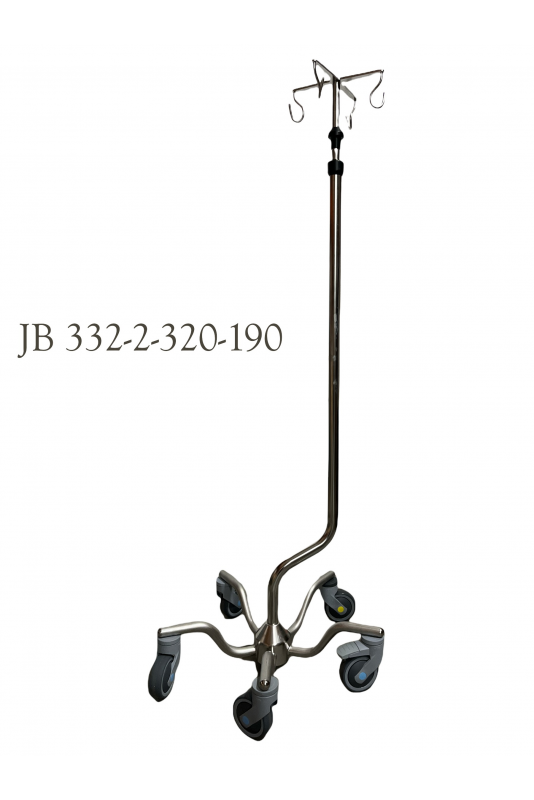

IV Pole "XL", One Hand telescopic solution, bend long tube, four hooks.

Specifications:
Material: Electropolished stainless steel AISI 304.
Height adjustment option from 1.516 mm. to 2.281 mm.
Wheel diameter: Ø75 mm. (2 x with brake and 2 x without brake)
Wheel brand: Tente wheels Ø100 mm.
Base diameter, circular foot: Ø545 mm.
Weight without equipment: 15 kg.
Max load: 50 kg. (on the wrong side)
Brand: JB-Medico


Optional hook top:
There are four other possible choices of hook tops
The massive, specially designed stainless steel frame enables the attachment of div.
Topics in a safe way, without being afraid to stand overturns.
It can be modified as needed and designed to withstand the weight.
It is a solid and specially designed undercarriage
The curved rod enables the attachment of an, e.g. full "Pump Rack" without it toppling over.
As required, it can be mounted without tools and washed and disinfected in the bed washers.

Handles and other accessories can be purchased separately!
1. Optional hook top / Bottle holder
(There are four other possible choices)
2. Pushing the handle
3Lock for B. Braun pump rack
4
Multibracket with a T-slot


Security
- No risk of damage due to the rounded bottleneck shape.
- Due to the geometry of hooks, the infusion bottles can't fall out.
- Outer and inner poles provided with plastic stoppage (no risk of damage)
- Adequate safety clearance in the collapsed mode as a precautionary measure against safety (e.g. squeezing fingers)
- increased stability due to the conical connection between the stand and foot section
- Safety bottle crossing according to DIN ISO 15375

IV-Stands
All JB-Medico IV poles are manufactured in Denmark and made of stainless steel, which can withstand a high load.
Infusion racks mounted on the market's fines wheels (Tente) are anti-static and meet all known hygiene requirements.
Many models are adjustable in height with the unique
"One Hand" system that allows easy operation.

JB-Medico adapts solutions to all clinical departments.


We hope you can enjoy our products
Contact us for advice and offer on hospital equipment, by phone +45 7020 5826 or send us an email at info@jbmedico.com

Made of necessity – designed to hold.

Materials
Electropolished stainless steel (AISI 304)
Colour
Metal
Size
Base diameter Ø545mm
Height with / without wheels (min. Telescope) 1516/1379 mm.
Height with / without wheels (telescope max.) 2281 / 2144mm
Wheel diameter Ø100 mm
Weight
Dead weight without equipment 15 Kg.
UNSPSC code
42192405
Meet requirements, directive (EU). 2017/745, Annex1
Yes
Country of origin
Danish
Register with the Danish Medicines Agency
Yes
Download

We take reservations for printing errors and sold goods and supplier price. All prices are exclusive, customs and freight JB-Medico reserves the right to change or adjust prices and quantities.

IV Pole “XL”, One Hand telescopic solution, bend long tube, 4 hooks.

kr.4,900.00
VAT excluded 1 to 3 business day
