Wheelbase, curved legs, IV-stands, in stainless steel (AISI 304)

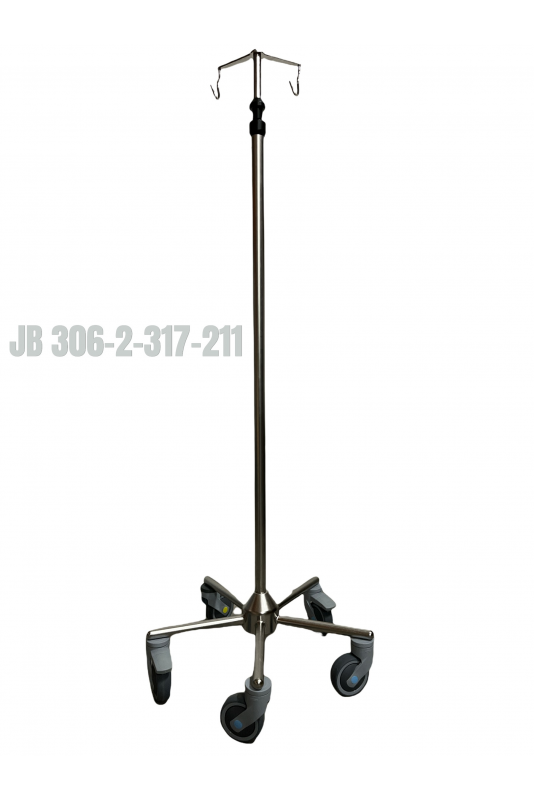

IV Pole Small, "One Hand" telescopic solution
-
IV Pole Small, "One Hand" telescopic solution
Specifications:
Material: Electropolished stainless steel AISI 304.
Height adjustment option from 1.516 mm. to 2.281 mm.
Wheel diameter: Ø75 mm. (2 x with brake and 2 x without brake)
Wheel brand: Tente wheels Ø100 mm.
Base diameter, circular foot: Ø515 mm.
Weight without equipment: 15 kg.
Max load per hook: 5 kg.
Max load: 40 kg.
Brand: JB-Medico
Handles and other accessories can be purchased separately!
1. Optional hook top / Bottle holder
( There are four other possible choices)
2. Pushing handle
3. Lock for B. Braun pump rack
4. Multibracket with a T-slot
The massive, specially designed stainless steel frame enables miscellaneous attachment.
Topics should be discussed safely, without having to be afraid to stand overturns.
It can be modified as needed and designed to withstand the weight.
It is a solid and specially designed undercarriage
The curved rod enables the attachment of a full "Pump rack" without it toppling over.
It can be mounted without tools and washed and disinfected in the bed washers, as required.
Security
- No risk of damage due to the rounded bottleneck shape.
- Due to the geometry of hooks, the infusion bottles can't fall out.
- Outer and inner poles provided with plastic stoppage (no risk of damage)
- Adequate safety clearance in the collapsed mode as a precautionary measure against safety (e.g. squeezing fingers)
- increased stability due to the conical connection between the stand and foot section
- Safety bottle crossing according to DIN ISO 15375
IV-Stands
All JB-Medico IV poles are manufactured in Denmark and made of stainless steel, which can withstand a high load.
Infusion racks mounted on the market's fines wheels (Tente) are anti-static and meet all known hygiene requirements.
Many models are adjustable in height with the unique "One Hand" system that allows easy operation.
Made of necessity – designed to last.
JB-Medico makes a difference in the design and advice of hygienic suspension solutions for:
Healthcare, food and pharmaceutical industry
Hospitals, medical centres, chiropractors and dentists
Physiotherapists, schools and laboratory
JB-Medico adapts solutions to all clinical departments.
We hope you can enjoy our products
Contact us for advice and offer on hospital equipment, by phone +45 7020 5826 or send us an email at info@jbmedico.com
Made of necessity – designed to hold.
- Brand
- JB-Medico Aps
- Materials
- ABS plastic
Electropolished stainless steel (AISI 304) - Colour
- Metal
- Size
- Height adjustment 765 mm
Height with / without wheels (telescope max) 2370mm / 2232mm
Height with / without wheels (telescope min) 1605 / 1470mm
Wheel diameter Ø100 mm - Weight
- Load per hook 5 Kg.
Max load 40 kg. - UNSPSC code
- 42192405
- Meet requirements, directive (EU). 2017/745, Annex1
- Yes
- Country of origin
- Danish
- Register with the Danish Medicines Agency
- Yes
- HS code
- 94029020
IV Pole “Small”, One Hand telescopic solution.
