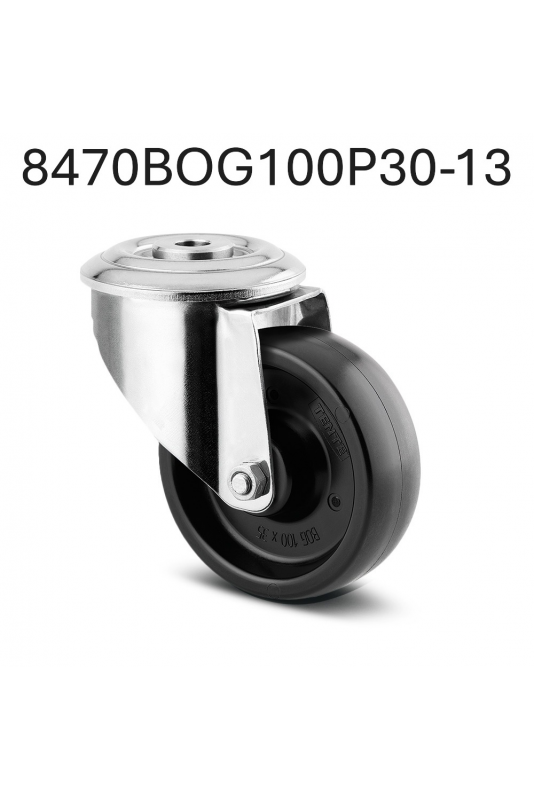

Alpha stainless, swivel wheel without brake, heat-resistant rubber, Ø100 mm

Swivel wheels, Fork made of stainless steel, swivel with double ball ring, wheel axle with nut, Center hole.

Wheels made of heat-resistant synthetic material and self-lubricating sliding bearings can withstand autoclaving

Can withstand being autoclaved, and when mounted on our drop racks, they can be used for:

Class A clean room

Class B clean room

Minimum quantity for sale: 4 pcs.

JB Medico now sells a selection of Tente wheels that we have used on our products for many years.

Specifications:

Wheel Ø 100 mm

Wheel width 35 mm

Centre hole-Ø 13 mm

Discharge 41 mm

Outlet diameter 182 mm

Construction height 128 mm

Temperature range - 25 / + 280 °C

Standard EN_12532

Weight 0.681 kg

Dropout radius 91 mm

Wheel tread hardness Shore D 90

Load at 3 km 125 kg

Load (static) 250 kg

HS Code: 87169090

UNSPSC (v. 19.0501)

EAN 4031582373394

Features/benefits

Rolling resistance ● ● ● ● ○

Driving noise ● ● ● ○ ○

Wear ● ● ● ● ●

Rust protection ● ● ● ● ●

Installation:  Easy installation using an Umbraco key.

Fits our iv-poles with the "One Hand system".

All JB-Medico IV-Poles are made in Denmark of stainless steel, which can withstand a high load.

Infusion stands are fitted with the market's best wheels, Tente, which are anti-static and meet all known hygiene requirements.

The unique "One Hand" system enables easy operation and allows many models to be adjusted in height.

---
