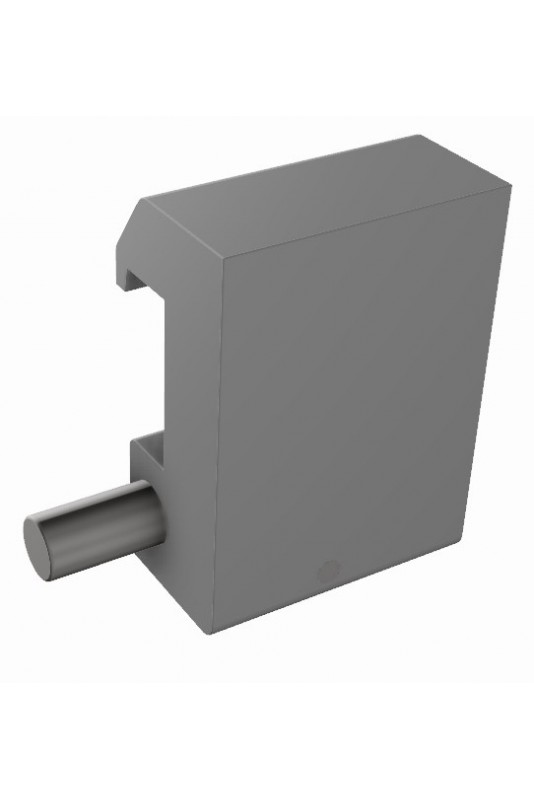

The slide clamp half model is locked with one ball clasp. It can be mounted without tools and washed and disinfected in the dishwasher.
The minimum quantity for sale is five pcs.
It can be ordered with threaded holes on request.
Medical Rail Clamps, Sliding Clamps Medical rail clamps.
Medical rail clamps are used for the equipment rail on the wall or bedside panel to attach hospital equipment.
Durability hygiene and rail-mounted.
This Medical rail Clamp JB 147-00-00 fits only for:
EU DIN 10x25 mm standard rails.
DIN is an abbreviation of Deutsches Institut für Normung.
Specifications:
Height: 61,5 mm.
Width: 45 mm. (without an arm)
Width: 64 mm. (with an arm)
Depth: 28,6 mm.
Material: Aluminum. (Ceramic Coating)
Colour: H-151 "Satin Aluminium"
Gloss: Satin 35-50 my
Weight: 0,168 kg.
It can be mounted and dismounted without using tools.
Slide clamp half model, locked with one ball clasp 10x25 mm. EU-DIN Standard
JBM Massive Aluminium DIN 10x25mm Equipment Rail. |
JB 2520000 Medical Equipment Rail, ALU DIN EU Standard 10x25 mm. kr.170.00 |
