Rail Clamp, wide model, locked using two socket screws, Ø20 mm.hole
Slide clamp half model, locked using two socket screws, Ø20 mm hole
-

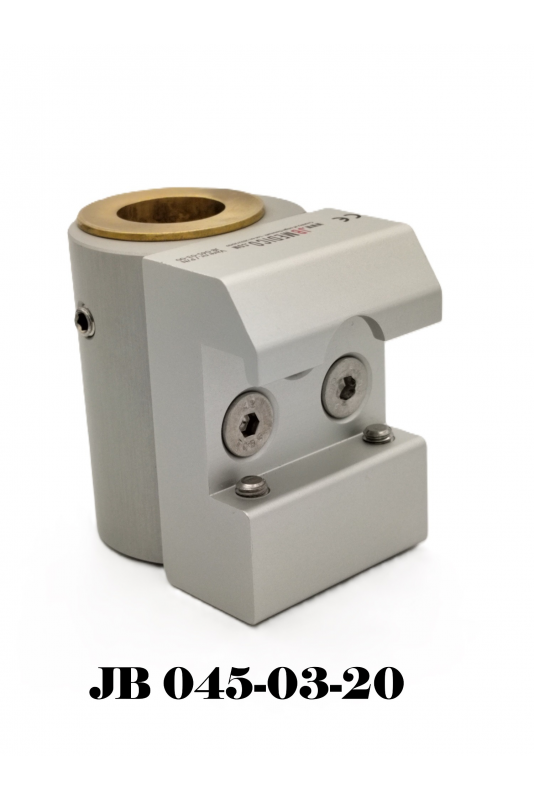

Slide clamp half model, locked using two socket screws with fixing device and brass bush Ø20 mm. hole.
The minimum quantity for sale is four pcs.
Easily mounted on the panel with the Umbraco key.
It can be washed and disinfected in the dishwasher, as required.
Specifications:
Height: 61,5 mm.
Width: 45 mm.
Depth: 64,2 mm.
Weight: 0,384 kg.
Material: Aluminum. (Ceramic Coating)
Colour: H-151 "Satin Aluminium"
Gloss: Satin 35-50 my
Handles purchased separately: (JB 94-00-00)
The bracket is used in many places for different solutions:
1. IV-Pole on bedside wall panels
2. Flat-screen arms
3. Medical equipment
4. Medical lighting
5 Column tube/rods
Medical Rail Clamps, Sliding Clamps Medical rail clamps.
Medical rail clamps are used for the equipment rail on the wall or bedside panel to attach hospital equipment.
Durability hygiene and rail-mounted.
This Medical rail Clamp JB 045-03-18 fits only for:
EU DIN 10x25 mm medical rails.
We hope you can enjoy our products
Contact us for advice and offer on hospital equipment, by phone +45 7020 5826 or send us an email at info@jbmedico.com
Made of necessity – designed to hold.
- Brand
- JB-Medico Aps
- Materials
- (Ceramic Coating)
- Colour
- H-151 ”Satin Aluminium”
- Size
- Depth 60.6 mm.
Height 62 mm
Wide 45 mm. - Standard
- EU DIN 10x25 mm
- UNSPSC code
- 42191603
- CE MARKED
- Yes
- Meet requirements, directive (EU). 2017/745, Annex1
- Yes
- Country of origin
- Danish
- Register with the Danish Medicines Agency
- Yes
- HS code
- 76042990
Slide clamp half model, locked using two socket screws with fixing device and brass bush Ø20 mm. hole.
