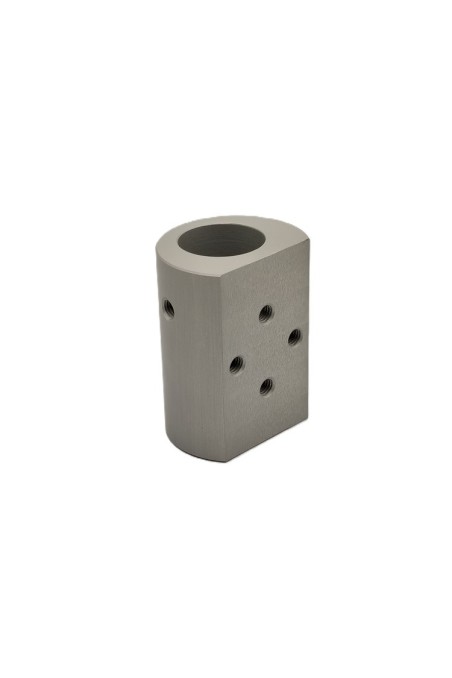

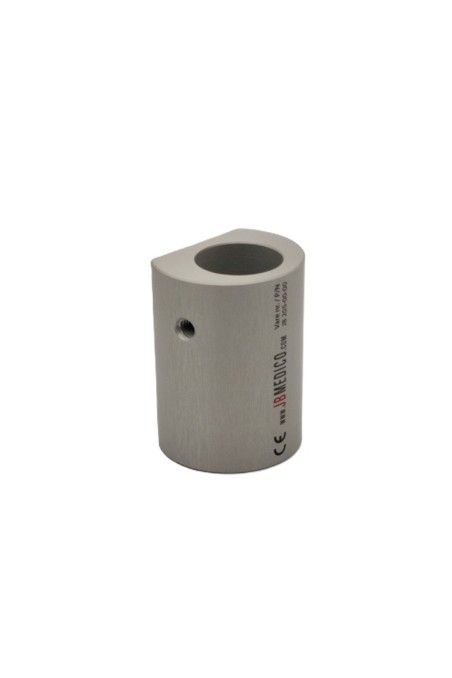

Fixing device, slide clamps & multi-brackets, Ø25 mm.
The minimum quantity for sale is two pcs.
Prepared for suspension.
Delivered standard without brass bushing and adjustable handle.
External specifications:
Height: 61.5 mm.
Width: 36 mm.
Depth: 35.6 mm.
Weight: 133 grams.
Hole: Ø25 mm. (Without bushing)
Hole: Ø20 mm. (With brass bushing)
Material: Aluminium
Accessories:
Handles purchased separately: (JB 94-00-00)
The brass bushing is purchased separately. (JB 22-00-05)
Easily mounted on the panel without tools, it can be washed and disinfected in the dishwasher.
When JB 205-00-00 is assembled with a claw:
1. IV-Pole on bedside wall panels
2. Flat-screen arms
3. Medical equipment
4. Medical lighting
5. Column tube/rods
Medical Rail Clamps, Sliding Clamps Medical rail clamps.
For attachment of hospital equipment, medical rail clamps are used for the equipment rail located on the wall or bedside panel.
Durability hygiene and rail-mounted.
JB-Medico makes a difference in the design and advice of hygienic suspension solutions for:
Healthcare, food and pharmaceutical industry
Hospitals, medical centres, chiropractors and dentists
Physiotherapists, schools and laboratory
JB-Medico adapts solutions to all clinical departments.
Fixing device for rail clamps and multi brackets, Ø25 mm hole.
Rail Clamp, a wide model with one ball clasp and three pcs. Countersunk Ø6,6 mm. Holes. |
JB 1450300 Rail Clamp, wide model, one-ball clasp, three holes kr.310.00 |
|
Rail Clamp, wide model, locked using two socket screws with three pcs. countersunk Ø6,6mm holes. "Prepared for suspension.” |
JB 1430300 Rail Clamp, wide model, locked using two socket screws with three pcs. countersunk Ø6,6mm kr.365.00 |
|
Rail Clamp, a wide model with a two-ball clasp and three pcs. countersunk Ø6,6 mm. holes. |
JB 1440300 Rail Clamp, wide model, two-ball clasp, three holes kr.395.00 |
|
Stainless adjustable handle M6X20 mm. |
JB 940000 Adjustable handle M6X20 mm, stainless steel kr.199.00 |
|
Brass bush, Ø20 mm hole, for example fixing device and arm series. |
JB 220005 Brass bush, Ø20 mm. hole kr.125.00 |
|
Slide clamp half model, locked with one ball clasp. Countersunk Ø6,6mm holes. |
JB 1210300 Slide clamp half model, locked with one ball clasp kr.200.00 |
|
Rail Clamp, half model, locked with two socket screws. Locks with two pin screws. |
JB 2160300 Rail Clamp, half model, locked with two socket screws kr.185.00 |
|
Rail Clamp, wide model, locked with one ball lock. Three pcs. Countersunk holes Ø6,6 mm. |
JB 2170000 Rail Clamp, wide model, locked with one ball lock kr.325.00 |
|
Rail Clamp, wide model, locked using two socket screws. Three pcs. countersunk holes Ø 6,6 mm. |
JB 2060000 Rail Clamp, wide model, locked using two socket screws kr.325.00 |
|
Rail Clamp, wide model, locked with two ball locks and three pcs. Countersunk holes Ø 6,6 mm. |
JB 2070000 Rail Clamp, wide model, locked with two ball locks kr.375.00 |
|
Multibracket with 2XØ6 clearance holes, fit from 16-41 mm. |
JB 1580005 Multibracket with 2XØ6 clearance holes, fit from 16-41 mm. kr.325.00 |
