Multibracket with fixing device and brass bush Ø20 mm. hole.

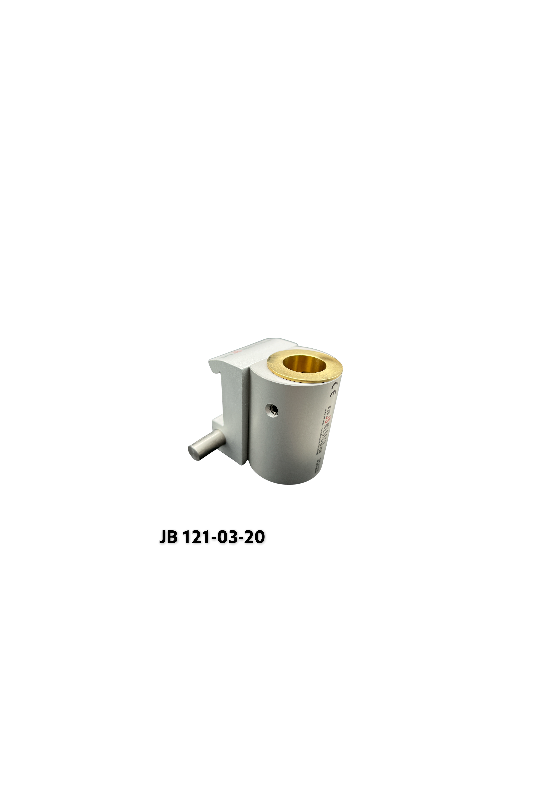

Rail Clamp, half model, locked using one-ball clasp, Ø20 mm. hole
-
Slide clamp half model, locked with one ball clasp, fixing device, and brass bush Ø20 mm. hole.
The minimum quantity for sale is four pcs.
Easily mounted on the panel without tools.
The bracket is used in many places for different solutions:
1. IV-Pole on bedside wall panels.
2. Flat-screen arms
3. Medical equipment
4. Medical lighting
5 Column tube/rods
This Medical rail Clamp JB 121-03-20 fits only for:
SCANDINAVIAN 10x30 mm medical rails.
Specifications:
Height: 61,5 mm.
Width: 45 mm. (without an arm)
Width: 64 mm. (with arm)
Depth: 60,6 mm.
Weight: 0,383 kg.
Material: Aluminum. (Ceramic Coating)
Colour: H-151 "Satin Aluminium"
Gloss: Satin 35-50 my
Handles purchased separately: (JB 94-00-00)
Medical Rail Clamps, Sliding Clamps Medical rail clamps.
Medical rail clamps are used to attach hospital equipment to the equipment rail located on the wall or bedside panel.
Durability hygiene and rail-mounted.
Made of necessity – designed to last.
We hope you can enjoy our products
Contact us for advice and offer on hospital equipment, by phone +45 7020 5826 or send us an email at info@jbmedico.com
Made of necessity – designed to hold.
- Brand
- JB-Medico Aps
- Materials
- (Ceramic Coating)
- Colour
- H-151 ”Satin Aluminium”
- Size
- Depth 60.6 mm.
Height: 61,5 mm.
Width with arm 64 mm.
Width without arm 45 mm. - Standard
- DK / Scandinavian / UNI Flex 10 x 30 mm
- UNSPSC code
- 42191603
- CE MARKED
- Yes
- Meet requirements, directive (EU). 2017/745, Annex1
- Yes
- Country of origin
- Danish
- Register with the Danish Medicines Agency
- Yes
- HS code
- 76042990
Rail Clamp, half model, locked using one-ball clasp, Ø20 mm. hole
