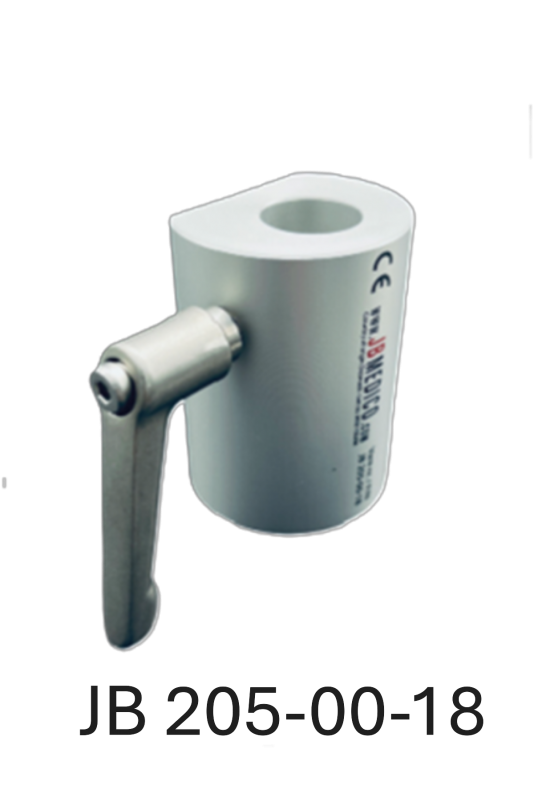

Fixing device or rail clamps and multi brackets, Ø18 mm. hole.
Minimum quantity for sale: 2 pcs.
Please check the diameter of the lamp shaft, which is typically one of the three below diameters.
Accessories separately purchased
Handles purchased separately: (JB 94-00-00)
Tree sizes of plastic bushings separately purchased
JB 128-00-09 (Ø9.6 mm.)
JB 128-00-01 (Ø13 mm.)
JB 127-00-01 (Ø16 mm.)
External specifications:
Height: 61.5 mm.
Width: 36 mm.
Depth: 35.6 mm.
Weight: 171 grams.
Hole: Ø1 mm. (Without bushing)
Material: Aluminium
JB 205-00-18 is assembled with a claw used for
1. IV-Pole on bedside wall pane
2. Flat-screen ar
3. Medical equipment
4. Medical light
5. Column tube/rods
Medical Rail Clamps, Sliding Clamps Medical rail clamps:
For attachment of hospital equipment, medical rail clamps are used for the equipment rail located on the wall or bedside panel.
Durability hygiene and rail-mounted.
JB-Medico makes a difference in the design and advice of hygienic suspension solutions for:
Healthcare, food and pharmaceutical industry.
Hospitals, medical centres, chiropractors and dentists.
Physiotherapists, schools and laboratories.
JB-Medico adapts solutions to all clinical departments.
Fixing device for rail clamps and multi brackets, Ø18 mm hole.
Rail Clamp, a wide model with one ball clasp and three pcs. Countersunk Ø6,6 mm. Holes. |
JB 1450300 Rail Clamp, wide model, one-ball clasp, three holes kr.310.00 |
|
Pom bushings, hole size Ø16 mm |
JB 1270001 Pom bushings, hole size Ø16 mm kr.45.00 |
|
Pom bushings, hole size Ø9.6 mm. |
JB 1280009 Pom bushings, hole size Ø9.6 mm. kr.45.00 |
|
Rail Clamp, wide model, locked using two socket screws with three pcs. countersunk Ø6,6mm holes. "Prepared for suspension.” |
JB 1430300 Rail Clamp, wide model, locked using two socket screws with three pcs. countersunk Ø6,6mm kr.365.00 |
|
Pom bushings, hole size Ø13 mm. |
JB 1280001 Pom bushings, hole size Ø13 mm kr.45.00 |
|
Rail Clamp, a wide model with a two-ball clasp and three pcs. countersunk Ø6,6 mm. holes. |
JB 1440300 Rail Clamp, wide model, two-ball clasp, three holes kr.395.00 |
|
Stainless adjustable handle M6X20 mm. |
JB 940000 Adjustable handle M6X20 mm, stainless steel kr.199.00 |
|
Slide clamp half model, locked with one ball clasp. Countersunk Ø6,6mm holes. |
JB 1210300 Slide clamp half model, locked with one ball clasp kr.200.00 |
|
Rail Clamp, half model, locked with two socket screws. Locks with two pin screws. |
JB 2160300 Rail Clamp, half model, locked with two socket screws kr.185.00 |
|
Rail Clamp, wide model, locked with one ball lock. Three pcs. Countersunk holes Ø6,6 mm. |
JB 2170000 Rail Clamp, wide model, locked with one ball lock kr.325.00 |
|
Rail Clamp, wide model, locked using two socket screws. Three pcs. countersunk holes Ø 6,6 mm. |
JB 2060000 Rail Clamp, wide model, locked using two socket screws kr.325.00 |
|
Rail Clamp, wide model, locked with two ball locks and three pcs. Countersunk holes Ø 6,6 mm. |
JB 2070000 Rail Clamp, wide model, locked with two ball locks kr.375.00 |
|
Multibracket with 2XØ6 clearance holes, fit from 16-41 mm. |
JB 1580005 Multibracket with 2XØ6 clearance holes, fit from 16-41 mm. kr.325.00 |
