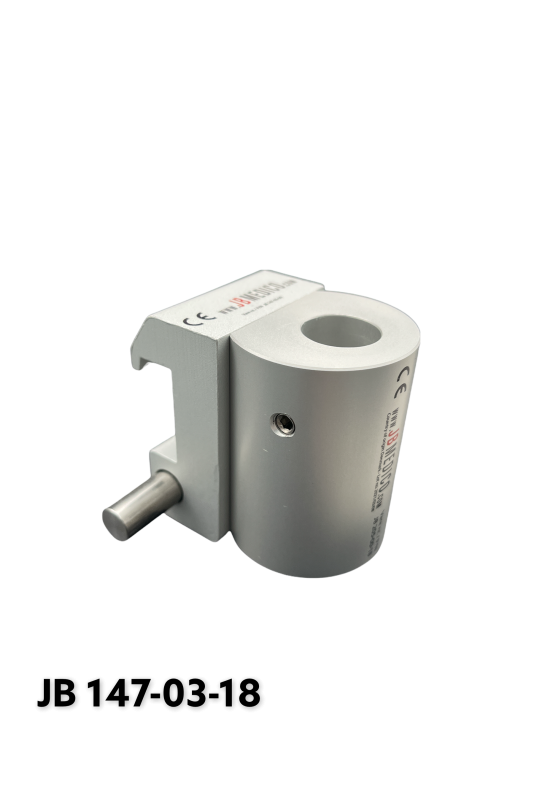

Slide clamp half model, locked using one ball claps with fixing device, Ø18 mm hole. JB 147-03-18 by JB Medico

Rail Clamp is a half model with a one-ball clasp and fixing device, Ø18 mm. hole.

The minimum quantity for sale is four pcs.

Rail clamps "Extra Solid for heavy and long Examination lights".
Easily mounted on the panel with the Umbraco key.
It can be washed and disinfected in the dishwasher, as required.

Medical Rail Clamps, Sliding Clamps Medical rail clamps.
Medical rail clamps are used for the equipment rail on the wall or bedside panel to attach hospital equipment.
Durability hygiene and rail-mounted.

This Medical rail Clamp, JB 147-03-18, fits only for:
EU DIN 10x25 mm. medical rails.

The bracket is used in many places for different solutions:
1. IV-Pole on bedside wall panels
2. Flat-screen arms
3. Medical equipment
4. Medical lighting
5. Column tube/rods

Specifications:
Height: 61,5 mm.
Width: 45 mm. (Without an arm)
Width: 64 mm. (With arm)
Depth: 64,2 mm.
Weight: 0,343 kg.
Material: Aluminum. (Ceramic Coating)
Colour: H-151 "Satin Aluminium"
Gloss: Satin 35-50 my

Tree sizes of plastic bushings separately purchased
JB 128-00-09 (Ø9.6 mm.)
JB 128-00-01 (Ø13 mm.)
JB 127-00-01 (Ø16 mm.)

Handles purchased separately:  (JB 94-00-00)


We hope you can enjoy our products
Contact us for advice and offer on hospital equipment, by phone +45 7020 5826 or send us an email at info@jbmedico.com

Made of necessity – designed to hold.

Brand
JB-Medico Aps
Materials
(Ceramic Coating)
Colour
H-151 ”Satin Aluminium”
Size
Depth 64,2 mm.
Height 62 mm
Width with arm 64 mm.
Width without arm 45 mm.
Standard
EU DIN 10x25 mm
UNSPSC code
42191603
CE MARKED
Yes
Meet requirements, directive (EU). 2017/745, Annex1
Yes
Country of origin
Danish
Register with the Danish Medicines Agency
Yes
HS code
76042990
Download

We take reservations for printing errors and sold goods and supplier price. All prices are exclusive, customs and freight JB-Medico reserves the right to change or adjust prices and quantities.

Slide clamp half model, locked using one ball claps with fixing device, Ø18 mm hole.

kr.400.00
VAT excluded 1 to 3 business day

The minimum purchase order quantity for the product is 4.
