IV Pole Small, "One Hand" telescopic solution
-

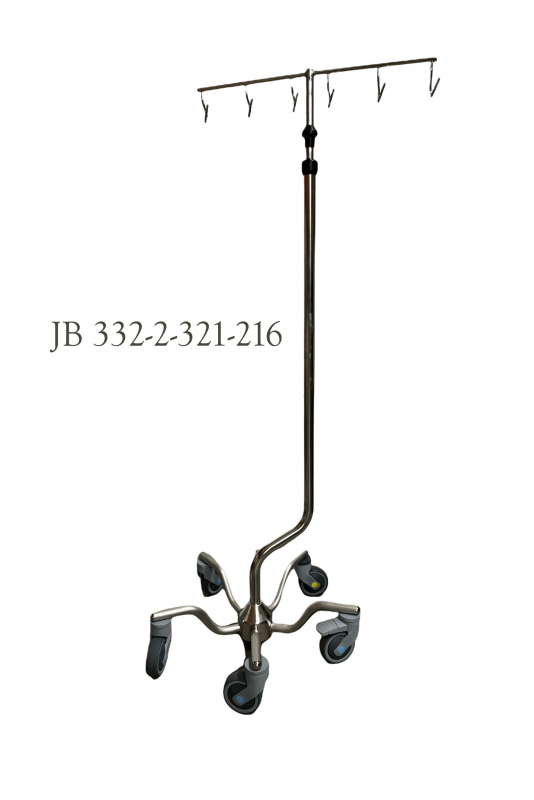

IV Pole "XXL", One Hand telescopic solution, bent long tube, six hooks.
Specifications:
Material: Electropolished stainless steel AISI 304.
Height adjustment option from 1.516 mm to 2.281 mm.
Wheel diameter: Ø100 mm. (2 x with brake and 2 x without brake + 1 antistatic wheel without brake)
Wheel brand: Tente wheels
Base diameter, circular foot: Ø545 mm.
Weight without equipment: 15 kg. (on the wrong side)
Max load per hook: 5 kg.
Max load: 50 kg.
Country of Origin: Denmark
HS Code: 94029020
Brand: JB-Medico
Optional hook top:
There are four other possible choices of hook tops
The massive, specially designed stainless steel frame enables the attachment of the div.
Topics should be discussed safely, without fear of being overturned.
It can be modified as needed and designed to withstand the weight.
It is a solid and specially designed undercarriage
The curved rod enables the attachment of, e.g., a full "ump Rack" without its toppling over.
As required, it can be mounted without tools and washed and disinfected in the bed washers.
Handles and other accessories can be purchased separately!
1. Optional hook top / Bottle holder
( There are four other possible choices.)
2. Pushing the handle
3. Lock for B. Braun pump rack
4. Multibracket with a T-slot
Security
- No risk of damage due to the rounded bottleneck shape.
- Due to the geometry of the hooks, the infusion bottles can't be removed.
- Outer and inner poles provided with plastic stoppage (no risk of damage)
- Adequate safety clearance in the collapsed mode as a precautionary measure against safety (e.g. squeezing fingers)
- increased stability due to the conical connection between the stand and foot section
- Safety bottle crossing according to DIN ISO 15375
IV-Stands:
All JB-Medico IV poles are manufactured in Denmark and made of stainless steel, which can withstand heavy loads.
Infusion racks mounted on the market's best wheels (Tente) are anti-static and meet all known hygiene requirements.
Many models are adjustable in height with unique
The "One Hand" system makes operation easy.
JB-Medico adapts solutions to all clinical departments.
IV Pole XXL, "One Hand" telescopic solution, six hooks
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
