Wave LED magnifying lamp, T105 Bl 800 840 3,5D CLA ESD EU

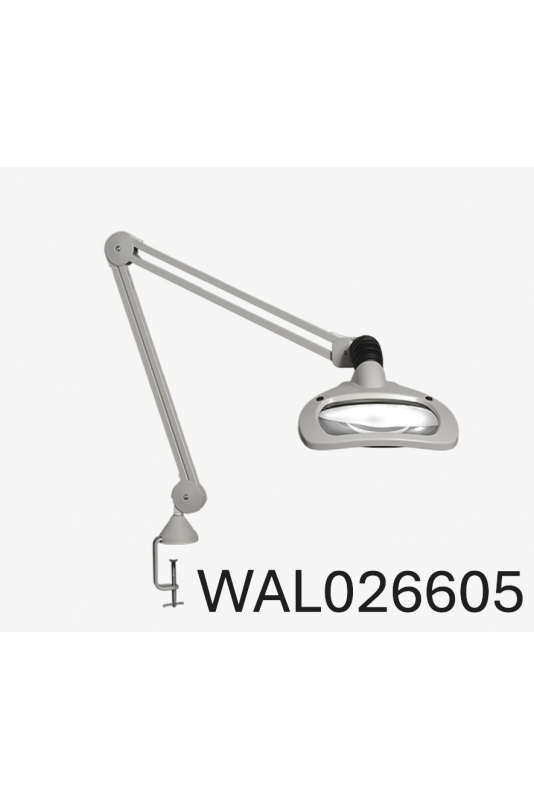

WAVE LED-UV T105 LG 3,5D CLA EU
-
KFM LED magnifying lamp from Glamox Luxo.
Minimum sale: 10 pcs. to get a discount.
Wave LED is a magnifier for industrial applications. Wave LED offer shadow-free magnification
with light from both sides and three-dimensional magnification
from the left or right. The 3D feature is especially welcome when working with circuit boards and
similar delicate objects. With its rectangular lens, Wave LED is also suitable for reading purposes.
Colours: White or light grey.
Maximum flexibility and precision
The joint's flexibility between the lamp head and arm makes exact positioning easy.
The spring-balanced arm provides maximum vertical and horizontal movement
and always stays in the right position without drifting.
The standard version is supplied with a 3.5 or 5-diopter glass lens.
A cloth cover protects the lens from dust and prevents the luminaire from inadvertently turning into a burning glass.
LED: Light source of the future!
Wave LED is equipped with two LED modules, which are lit individually.
The modules are dimmable and automatically turn off after 4 or 9 hours to save energy.
Light-emitting diodes have an incredibly long life span. The diodes in Wave LED have a life expectancy of 50,000 hours.
That means 25 years or more with normal use. You will never have to change the light source!
UV light version
UV magnifiers are primarily designed to inspect conformal coatings.
The 400nm UVA light source is also ideal for detailed inspection of welds, solder joints and other stress concentration areas.
UV tracer conformal coatings observed under the Wave LED UV light source glow a dark purple,
allowing for easy identification of uncoated areas.
Accessories: Medical rail clamps:
Medical rail clamps attach hospital equipment to the equipment rail on the wall or bedside panel.
Various types of hospital equipment are attached to the rail using Claws and Sliding Clamps.
These fittings are designed to be used with the equipment at the hospitals, e.g.,
P/N JB 126-00-13 Slide clamp for medical lamp DK STANDARD.
P/N JB 147-03-18 Slide clamp for medical lamp EU DIN standard.
P/N JB 158-03-18 Multiclaw with a fixing device, Ø18 mm. hole.
EU DIN Standard:
DIN EU 10X25 mm. clamps for Medical Rails.
DIN is an abbreviation of Deutsches Institut für Normung.
Scandinavian Standard:
Scandinavian 10x30 mm. clamps for Medical Rails
Our clamps suit Duoflex / Modura & Uniflex rails (Scandinavian Standard 10x30 mm.)
JB-Medico adapts solutions to all clinical departments.
We hope you can enjoy our products
Contact us for advice and offer on hospital equipment, by phone +45 7020 5826 or send us an email at info@jbmedico.com
Made of necessity – designed to hold.
- Brand
- Glamox A/S
- Materials
- Aluminium
Metal - Colour
- White
- UNSPSC code
- 42191603
- CE MARKED
- Yes
- Meet requirements, directive (EU). 2017/745, Annex1
- Yes
- Country of origin
- Norway
- HS code
- 94052100
- EAN no.
- 7040670266057
Minimum Sales: 10 pcs. to get a discount.
Wave LED UV is an illuminated magnifier that is ideal for inspecting conformal coatings and for the detailed inspection of welds, solder joints, and other stress concentration areas.
