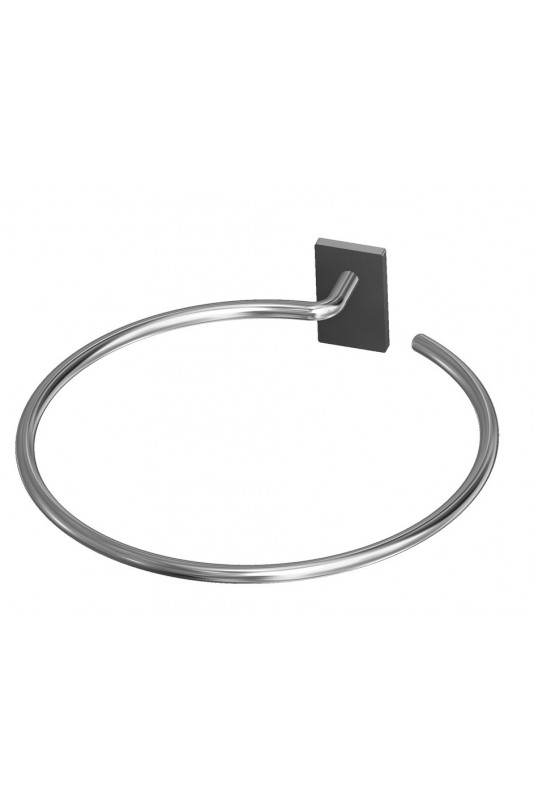

Bracket Ø100, for 2 L suction canister, Ø100 mm hole, stainless steel, JB 100-00-00

JB 100-00-00


-

  • Bracket Ø100, for 2 L. suction canister. JB 100-00-00 by JB Medico
  • Bracket Ø100, for 2 Litre suction canister, JB 100-00-00 by JB Medico
  • Bracket Ø100, for 2 Litre suction canister, JB 100-00-00 by JB Medico
  • Bracket Ø100, for 2 Litre suction canister, JB 100-00-00 by JB Medico
  • Bracket Ø100, for 2 L. suction canister. JB 100-00-00 by JB Medico
Bracket Ø100, for 2 L. suction canister. JB 100-00-00 by JB Medico
Description

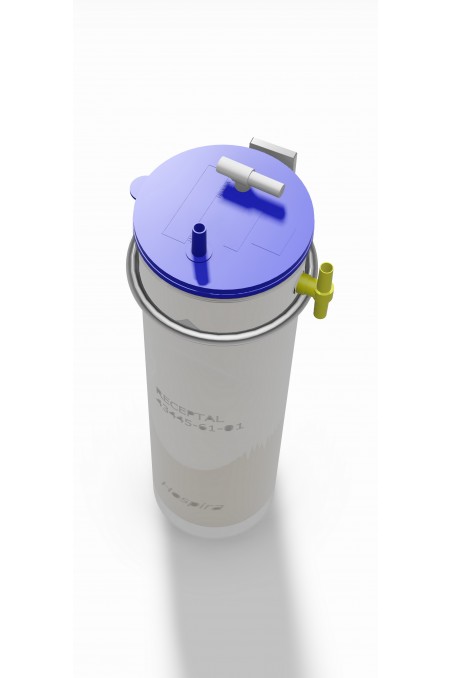

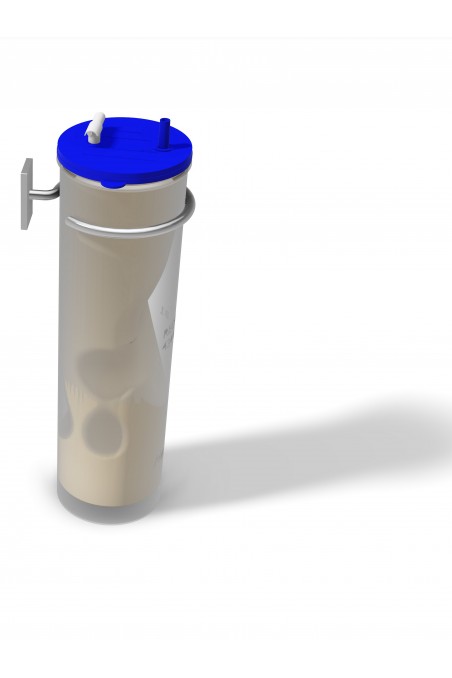

Bracket with T-slot for 2 Litre conical suction canister, e.g. from Abbott/Hospira. With a guide for T-track Brackets.

Minimum quantity for sale: 5 pcs.

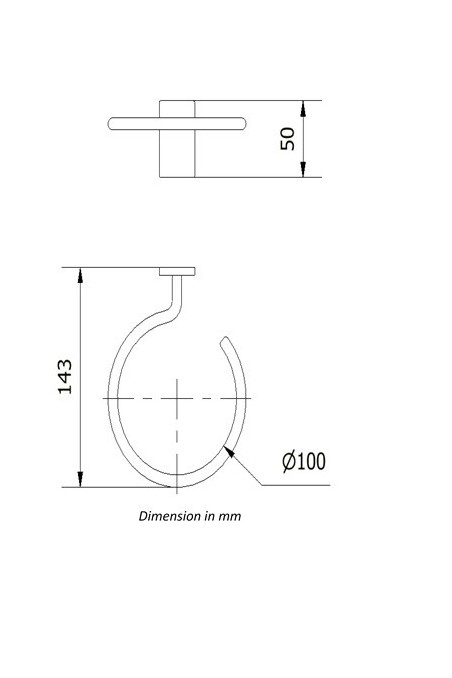

Specifications:
Weight: 0.189 kg.
Material: 8 mm stainless steel (AISI 304)
Surface: Electrically polished
Width: 143 mm. (Outer measure)
Height: 50 mm.
Diameter: Up to Ø100 mm. (Internal dimensions)
HS Code: 9402900000
Country of origin: Danish
Brand: JB-Medico.

Designed so it works with the equipment at the hospital, e.g.
P/N JB 47-00-00 Wall bracket Aluminium
P/N JB 120-00-00 Rail clamp with one ball lock and T-track
P/N JB 146-00-00 Rail clamp with T-track EU DIN standard
P/N JB 158-00-163 Multiclaw with a T-slot
P/N JB 820-625-163 GCX-rail bracket with a T-slot

It can be installed without tools and washed and disinfected in the instrument dishwasher.


When purchasing the above bracket, you can attach it to:
1. IV-poles / IV-Stands
2. Medical Equipment Rails
3. Columns
+ walls, syringe- and Anesthesia tables, trolleys, etc.


JB-Medico makes a difference in the design and advice of hygienic suspension solutions for:
Healthcare, food and pharmaceutical industry.
Hospitals, medical centres, chiropractors and dentists.
Physiotherapists, schools and laboratories.

We hope you can enjoy our products
Contact us for advice and offer on hospital equipment, by phone +45 7020 5826 or send us an email at info@jbmedico.com

Made of necessity – designed to hold.

Product Details
Materials
Electropolished stainless steel (AISI 304)
Colour
Metal
Size
Height 50 mm.
Weight
0,2 kg.
Int. diameter
Ø100 mm.
UNSPSC code
42142735
CE MARKED
Yes
Country of origin
Danish
Attachments
Download

JB 100-00-00 & JB 239-00-00 ES

Download (205.92k)
JB 100-00-00

Download (50.34k)
JB 100-00-00-Eng

Download (50.22k)
We take reservations for printing errors and sold goods and supplier price. All prices are exclusive, customs and freight JB-Medico reserves the right to change or adjust prices and quantities.

Bracket Ø100 mm., for 2 Litre suction canister, Abbott/Hospira.

kr.170.00
VAT excluded 1 to 3 business day

The minimum purchase order quantity for the product is 5.
