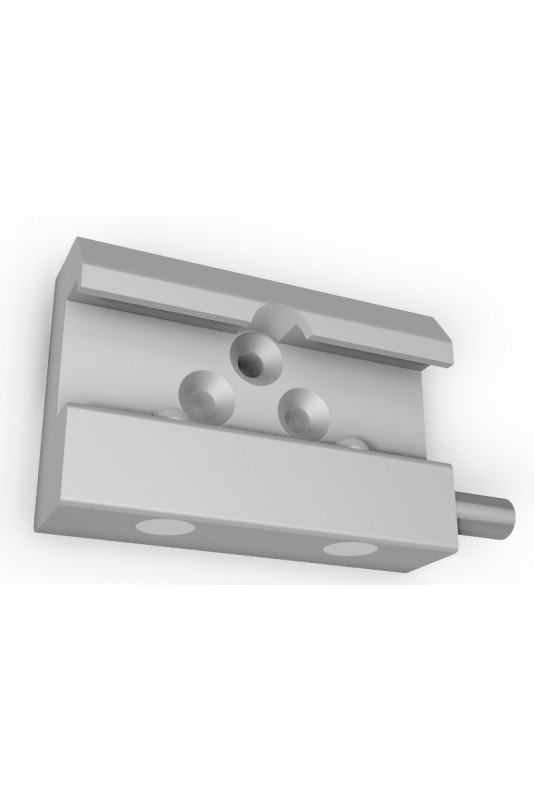

Rail Clamp, wide model, two-ball clasp, three holes

JB 144-03-00
  • Rail Clamp, wide model, two-ball clasp, three holes, JB 144-03-00 by JB Medico
  • Rail Clamp, wide model, two-ball clasp, three holes, JB 144-03-00 by JB Medico
  • Rail Clamp, a wide model, two-ball clasp, three holes, JB 144-03-00 by JB Medico
  • Rail Clamp, a wide model, two-ball clasp, three holes, JB 144-03-00 by JB Medico
  • Rail Clamp, a wide model, two-ball clasp, three holes, JB 144-03-00 by JB Medico
  • Rail Clamp, a wide model, two-ball clasp, three holes, JB 144-03-00 by JB Medico
  • Rail Clamp, a wide model, two-ball clasp, three holes, JB 144-03-00 by JB Medico
  • Rail Clamp, a wide model, two-ball clasp, three holes, JB 144-03-00 by JB Medico
  • Rail Clamp, a wide model, two-ball clasp, three holes, JB 144-03-00 by JB Medico
Rail Clamp, wide model, two-ball clasp, three holes, JB 144-03-00 by JB Medico
Description

Slide clamp wide model, with two ball clasp three pcs—countersunk Ø6,6 mm holes.

Specifications:
Weight: 300 gram
Height: 61,5 mm
Width: 90 mm
Depth: 25 mm
Material: Aluminium

Can be mounted and dismounted without using tools.

Available as standard without holes. JB 144-00-00

JB 144-03-00 can be ordered with other holes or threads on request.

Medical Rail Clamps, Sliding Clamps

For attachment of hospital equipment, medical rail clamps are used for the equipment rail located on the wall or bedside panel.


DIN is an abbreviation of: Deutsches Institut für Normung.

We hope you can enjoy our products
Contact us for advice and offer on hospital equipment, by phone +45 7020 5826 or send us an email at info@jbmedico.com

Made of necessity – designed to hold.

Product Details
Materials
Aluminium (Anodised)
Size
Depth 28,6 mm.
Height: 61.5mm
Wide 90mm
Standard
EU DIN 10x25 mm
UNSPSC code
42191603
Download

JB-144-03-00_DK

Download (651.6k)
JB-144-03-00_UK

Download (561.69k)
Katalog 2021_DK

Download (3.45M)
We take reservations for printing errors and sold goods and supplier price. All prices are exclusive, customs and freight JB-Medico reserves the right to change or adjust prices and quantities.

Rail Clamp, a wide model with two-ball clasp and three pcs. countersunk Ø6,6 mm holes.

kr395.00
VAT excluded 1 to 3 business day

The minimum purchase order quantity for the product is 5.
